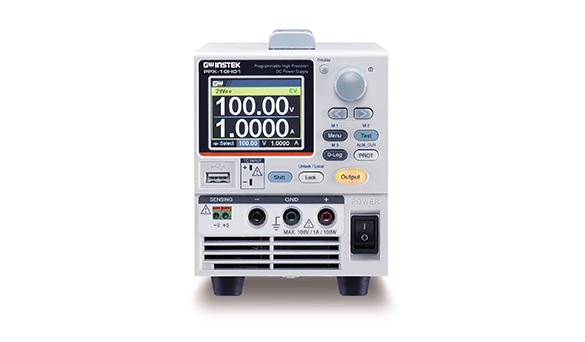

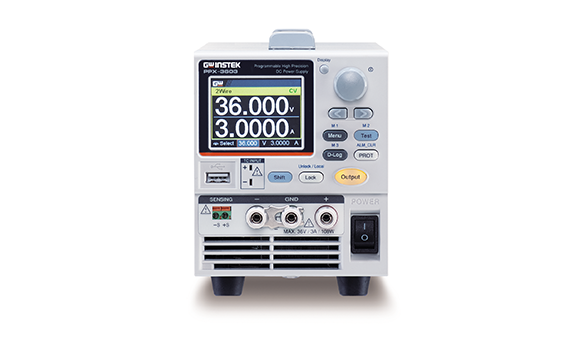

| 型号 | PPX-1005 | PPX-2002 | PPX-2005 | PPX-3601 | PPX-3603 | PPX-10H01 |
| 直流输出 |
| 输出电压 | 10.000V | 20.000V | 20.000V | 36.000V | 36.000V | 100.00V |
| 输出电流 | 5.0000A | 2.0000A | 5.0000A | 1.0000A | 3.0000A | 1.0000A |
| 输出功率 | 50W | 40W | 100W | 36W | 108W | 100W |
| 定电压操作 |
| 电源调节率 |
| ±(0.01% of setting + 1mV) | ±(0.01% of setting + 1mV) | ±(0.01% of setting + 1mV) | ±(0.01% of setting + 3mV) | ±(0.01% of setting + 3mV) | ±(0.01% of setting + 7mV) |
| 负载调节率 |
| ±(0.01% of setting + 2mV) | ±(0.01% of setting + 2mV) | ±(0.01% of setting + 3mV) | ±(0.01% of setting + 3mV) | ±(0.01% of setting + 4mV) | ±(0.01% of setting + 7mV) |
| 瞬间恢复时间 *1 |
| <50us | <100us |
| 纹波&噪声 | (Vrms*2/ Vpp*3) | 0.35mVrms/<6mV Vpp | 0.5mVrms/<8mV Vpp | 0.5mVrms/<8mV Vpp | 0.8mVrms/<10mV Vpp | 0.8mVrms/<10mV Vpp | 1.2mVrms/<15mV Vpp |
| 上升时间*4 | Rated load | 20ms | 50ms | 100ms |
| No load | 20ms | 50ms | 100ms |
| 下降时间*5 | Rated load | 10ms | 20ms | 50ms |
| No load | 100ms | 150ms | 250ms |
| 设定范围 (105%) |
| 0V～10.5V | 0V ～ 21.0V | 0V ～21.0V | 0V ～ 37.8V | 0V～37.8V | 0V～ 105.0V |
| 设定分辨率 |
| 0.2mV | 0.5mV | 0.5mV | 1mV | 1mV | 2mV |
| 设定准确度 (23℃±5℃) |
| ±(0.03% of setting + 3mV) | ±(0.03% of setting + 5mV) | ±(0.03% of setting + 5mV) | ±(0.03% of setting + 8mV) | ±(0.03% of setting + 8mV) | ±(0.03% of setting + 20mV) |
| 线路补偿电压 (single line) |
| 1V | 3V |
| 温度系数 (TYP.) |
| 100 ppm/℃ |
| 定电流操作 |
| 电源调节率 |
| ±(0.02% of setting + 250uA) | ±(0.02% of setting + 100uA) | ±(0.02% of setting + 250uA) | ±(0.02% of setting + 50uA) | ±(0.02% of setting + 150uA) | ±(0.02% of setting + 50uA) |
| 负载调节率 |
| ±(0.02% of setting + 250uA) | ±(0.02% of setting + 100uA) | ±(0.02% of setting + 250uA) | ±(0.02% of setting + 50uA) | ±(0.02% of setting + 150uA) | ±(0.02% of setting + 50uA) |
| 纹波&噪声 | (Arms*2) | 2mA | 1mA | 2mA | 400uA | 1mA | 1mA |
| 设定范围 (105%) |
| 0A ～ 5.25A | 0A～ 2.1A | 0A～ 5.25A | 0A ～ 1.050A | 0A～ 3.15A | 0A～ 1.050A |
| 设定分辨率 |
| 0.1mA | 0.05mA | 0.1mA | 0.02mA | 0.1mA | 0.02mA |
| 设定准确度 (23℃±5℃) |
| ±(0.05% of setting + 3.0mA) | ±(0.05% of setting + 1.0mA) | ±(0.05% of setting + 3.0mA) | ±(0.05% of setting + 0.5mA) | ±(0.05% of setting + 1.5mA) | ±(0.05% of setting + 1.0mA) |
| 温度系数 (TYP.) |
| 200 ppm/℃ |
| 测量与显示 |
| 电压档位 | H | 10.000V | 20.000V | 20.000V | 36.000V | 36.000V | 100.00V |
| L | 1.0000V | 2.0000V | 2.0000V | 3.6000V | 3.6000V | 10.000V |
| 电流档位 | H | 5.0000A | 2.0000A | 5.0000A | 1.0000A | 3.0000A | 1.0000A |
| M | 500.00mA | 200.00mA | 500.00mA | 100.00mA | 300.00mA | 100.00mA |
| L | 50.000mA | 20.000mA | 50.000mA | 10.000mA | 30.000mA | 10.000mA |
| LL | 5.0000mA | 2.0000mA | 5.0000mA | 1.0000mA | 3.0000mA | 1.0000mA |
| 测量分辨率 | 电压(H) | 1mV | 10mV |
| 电压(L) | 0.1mV | 1mV |
| 电流(H) | 0.1mA | 0.1mA |
| 电流(M) | 0.01mA | 0.01mA |
| 电流(L) | 0.001mA | 0.001mA |
| 电流(LL) | 0.0001mA | 0.0001mA |
| 测量准确度 | 电压(H/L) | ±(0.03% of rdg +2mV) | ±(0.03% of rdg +4mV) | ±(0.03% of rdg + 5mV) | ±(0.03% of rdg + 6mV) | ±(0.03% of rdg + 8mV) | ±(0.03% of rdg + 15mV) |
| 温度系数*6 (TYP.) | 100 ppm/℃ |
| 电流(H/M) | ±(0.05% of rdg + 2.5mA) | ±(0.05% of rdg + 1.0mA) | ±(0.05% of rdg + 2.5mA) | ±(0.05% of rdg + 0.4mA) | ±(0.05% of rdg + 1.2mA) | ±(0.05% of rdg + 1.0mA) |
| 电流(L/LL) | ±(0.1% of rdg + 40uA) | ±(0.1% of rdg + 24uA) | ±(0.1% of rdg + 40uA) | ±(0.1% of rdg + 16uA) | ±(0.1% of rdg + 28uA) | ±(0.1% of rdg + 24uA) |
| 温度系数*6 (TYP.) | 200 ppm/℃ |
| 温度测量 |
| 温度范围 (K-Type 热电偶) | 范围 | -200℃~+1372℃ |
| 分辨率 | 0.25℃ |
| 准确度 | ±(0.5% + 2℃) |
| 保护功能 |
| 过电压保护(OVP) | 运作 | Turns the output off, disys OVP and lights ALARM |
| 设定范围 | 0.5V ～ 11.0V | 1.0V ～22.0V | 1.0V ～ 22.0V | 1.8V ～ 39.6V | 1.8V～ 39.6V | 5.0V～ 110.0V |
| (5% to 110% of the rated output voltage) |
| 设定准确度 | ±(1% of rating) |
| 过电流保护(OCP) | 运作 | Turns the output off, disys OCP and lights ALARM |
| 设定范围 | 0.25A ～ 5.5A | 0.1A ～ 2.2A | 0.25A～5.5A | 0.05A ～ 1.1A | 0.15A～ 3.3A | 0.05A～ 1.1A |
| (5% to 110% of the rated output current) |
| 设定准确度 | ±(1% of rating) |
| 过温度保护(OTP) | 运作 | Turns the output off, disys OTP and lights ALARM |
| 其它 |
| 通信接口 | LAN | MAC Address, DNS IP Address, User Password, Gateway IP Address, Instrument IP Address, Subnet Mask |
| USB | Type A: Host, Type B: Slave, Speed: 1.1/2.0, USB-CDC |
| RS-232/RS-485 | Complies with the EIA-RS-232/RS-485 specifications (excluding the connector) |
| 输入电压范围*7 | 100Vac / 120Vac / 220Vac / 240Vac(±10%), 50Hz / 60Hz, single phase |
| 输入频率范围 | 47Hz ～ 63Hz |
| 输入峰值电流 | 25Amax or less | 20Amax or less | 30Amax or less | 35Amax or less | 40Amax or less | 30Amax or less |
| 视在功率 | 200VA | 150VA | 300VA | 150VA | 300VA | 300VA |
| 操作温度 | 0˚C ～40˚C |
| 储存温度 | -20˚C to 70˚C |
| 操作湿度 | 20% to 80% RH; No condensation |
| 储存湿度 | 20% to 85% RH; No condensation |
| 尺寸 (mm) & 重量 | 107(W)×124(H)×313(D) (not including protrusions)，Approx. 5.5kg |
| *1. 负载从额定输出电流的50%变为时，输出电压恢复到额定输出±（0.1%+10mV）范围内的时间。 |
| *2. 测量频率带宽为5 Hz至1 MHz。 |
| *3. 测量频率带宽为10 Hz至20 MHz。 |
| *4. 额定输出电压的10%~90%，带额定电阻负载。 |
| *5. 额定输出电压的90%~10%，带额定电阻负载。 |
| *6. 温度系数：预热30分钟后。 |
| *7. 在将电源插头连接到交流电源插座之前，请确保底部面板的电压选择开关处于正确位置。 连接到错误的交流线路电压可能会损坏仪表。 |
